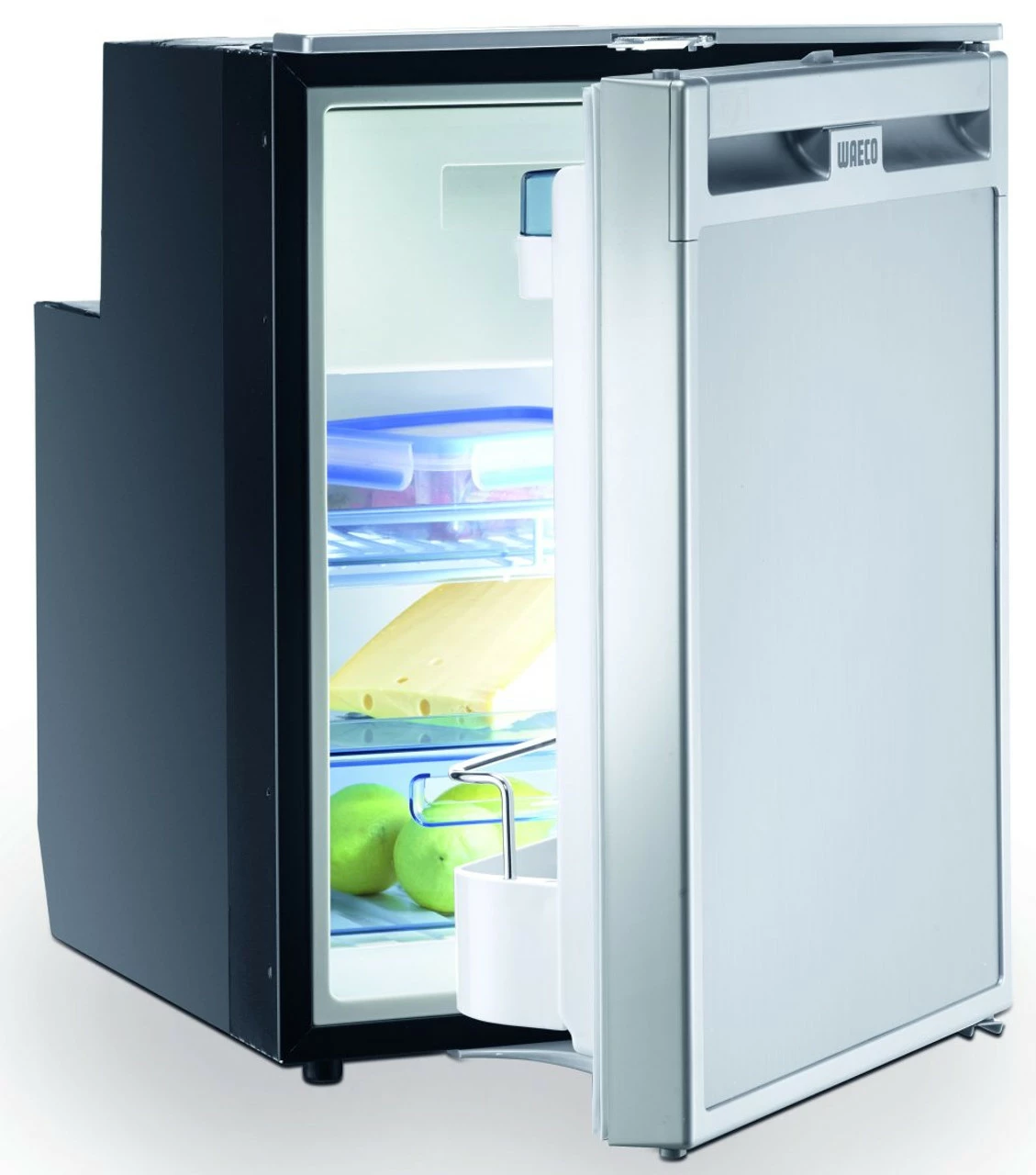

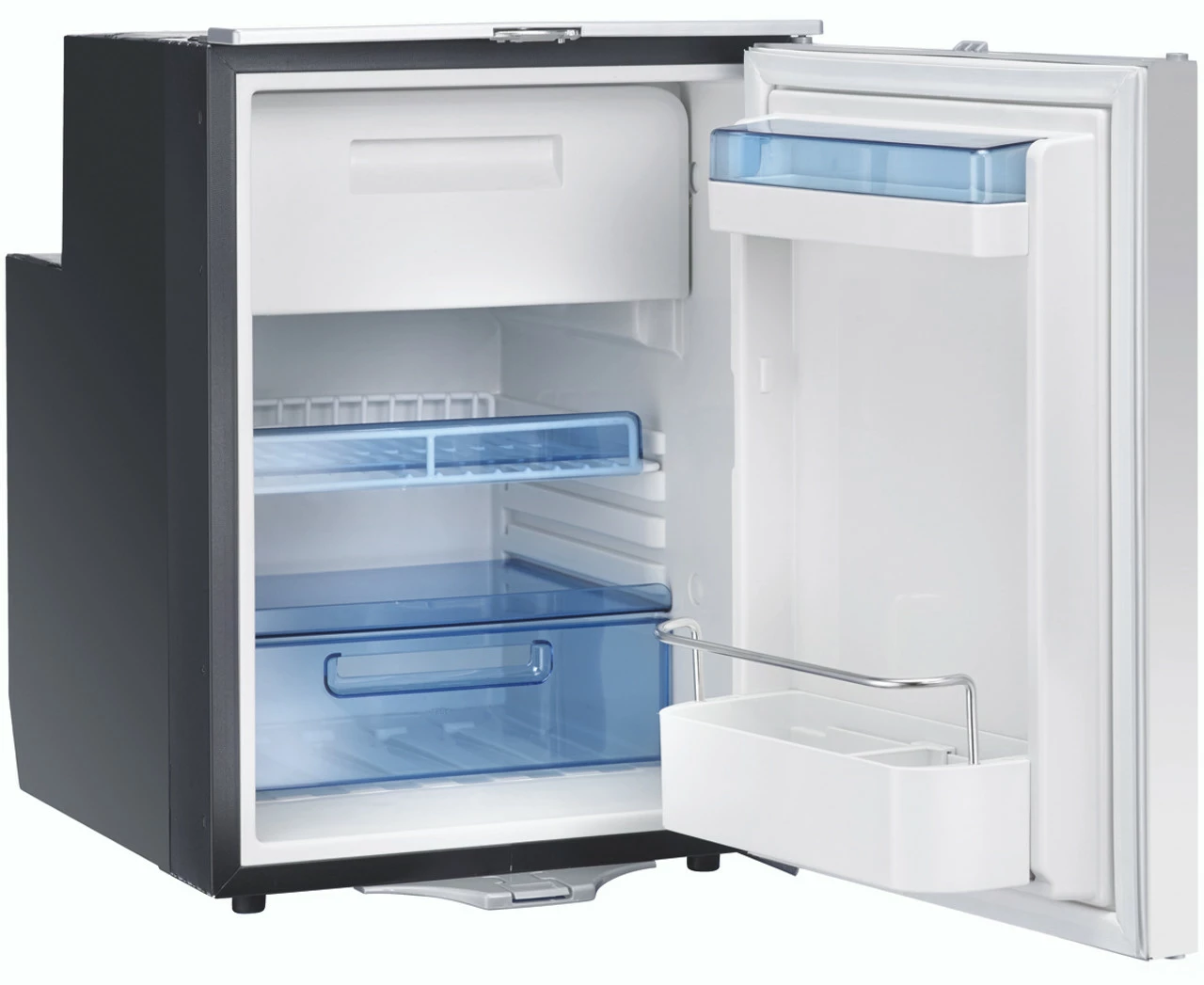

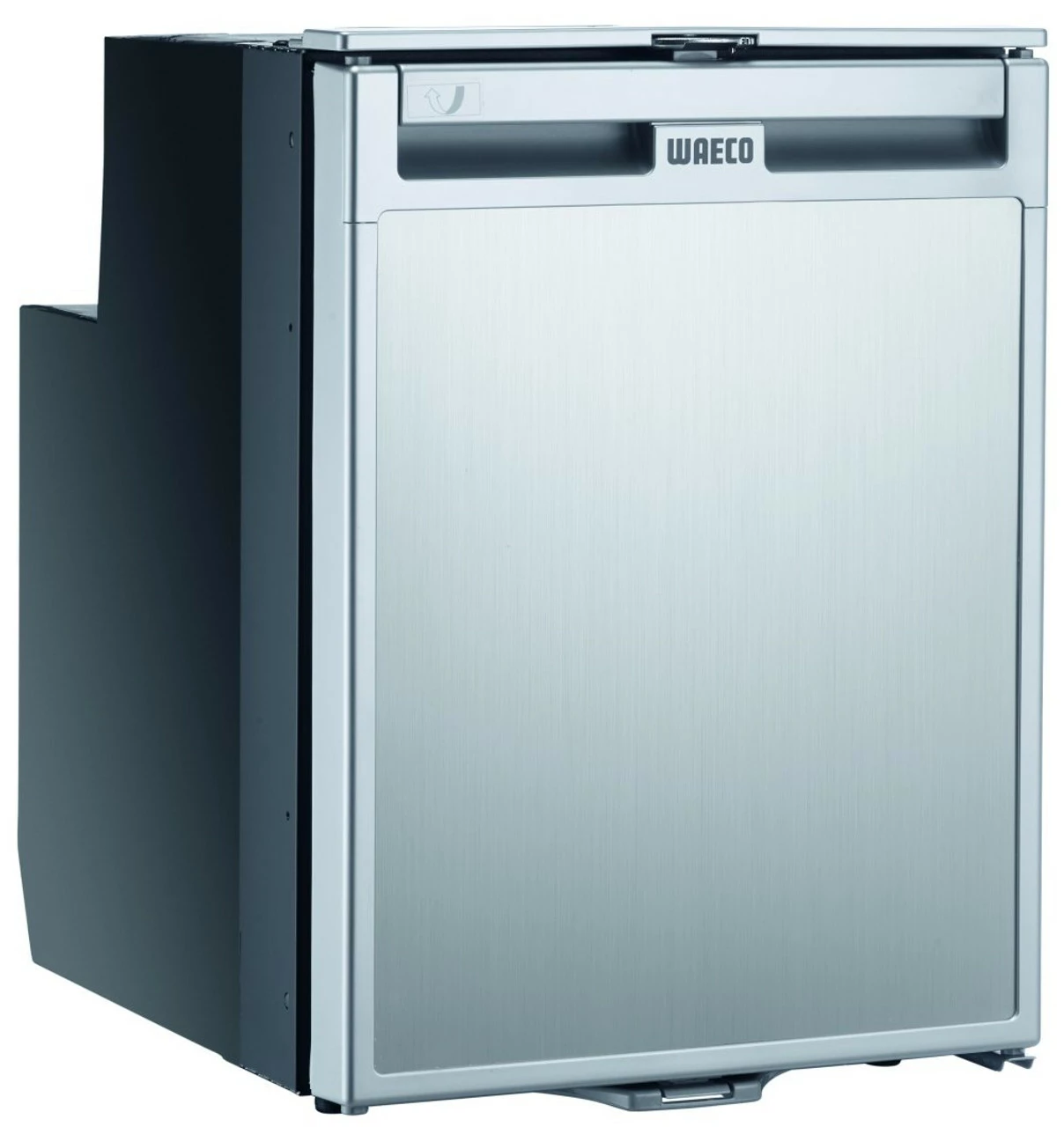

Dometic Waeco CRX50 12volt 24v Compressor Fridge Marine Campervan Refrigerator

A versatile compressor fridge with a uniquely removable freezer compartment, the Waeco CRX50 is perfect for use in marine, campervans, caravans and motorhomes

With the added benefits of having a low consumption of energy (so low that it can feasibly be run off solar panels!), the Waeco CRX50 2 Way Compressor Fridge has an ample 48L refrigerator capacity which can also maintain between 5 – 7 degrees even under the pressure of tropical temperatures!

What makes the Dometic Waeco CRX50 different from a standard CR50 model?

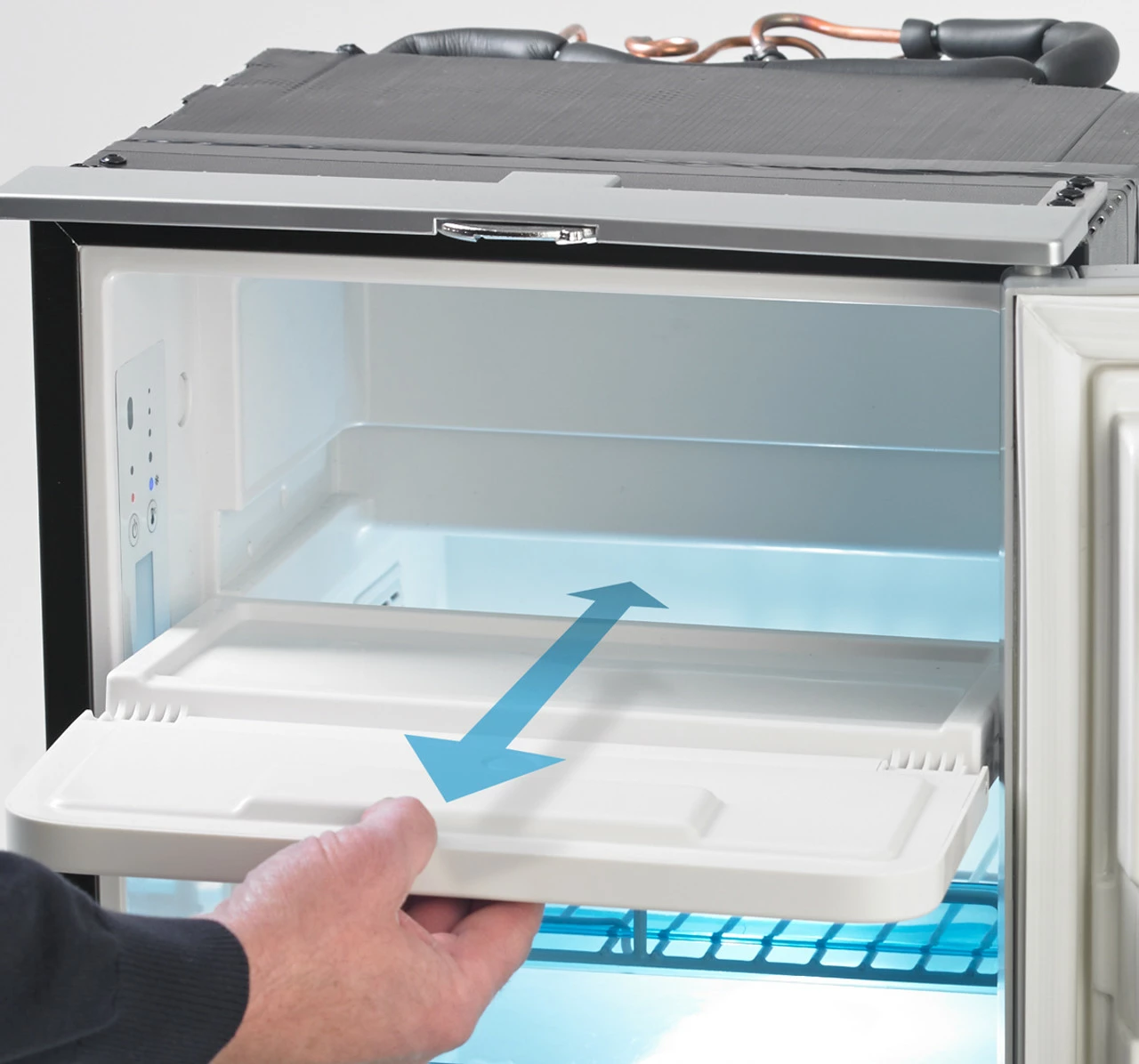

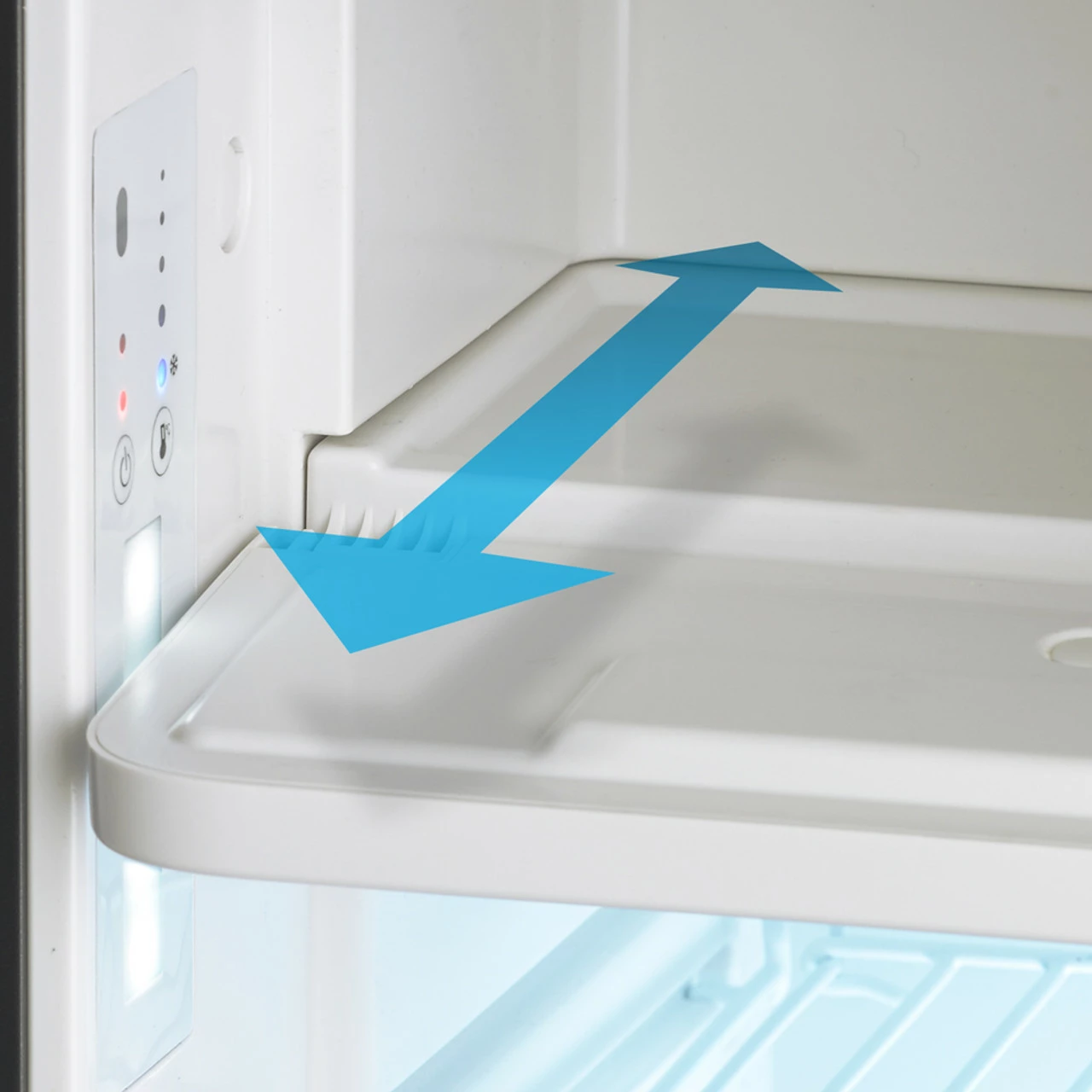

The Waeco CRX50 2 Way Caravan, Marine & Motorhome Fridge still has all the outstanding features of the original, standard model but with the added bonus of a completely versatile configuration in the form of a removable freezer compartment, meaning that you can adapt and use your Waeco CRX50 to suit your needs whenever and wherever you need it. As a result, the Waeco CRX50 Compressor Fridge can be used as a conventional fridge/freezer, full fridge or full freezer. The Waeco CRX50 also now features a slightly chamfered rear wall, this helps clear the strengthening pieces found in many vans at floor level, and also helps for a ‘snug’ fit in marine applications where the hull turns inwards near the bilges.

Dometic Waeco Compressor fridge CRX50 the features:

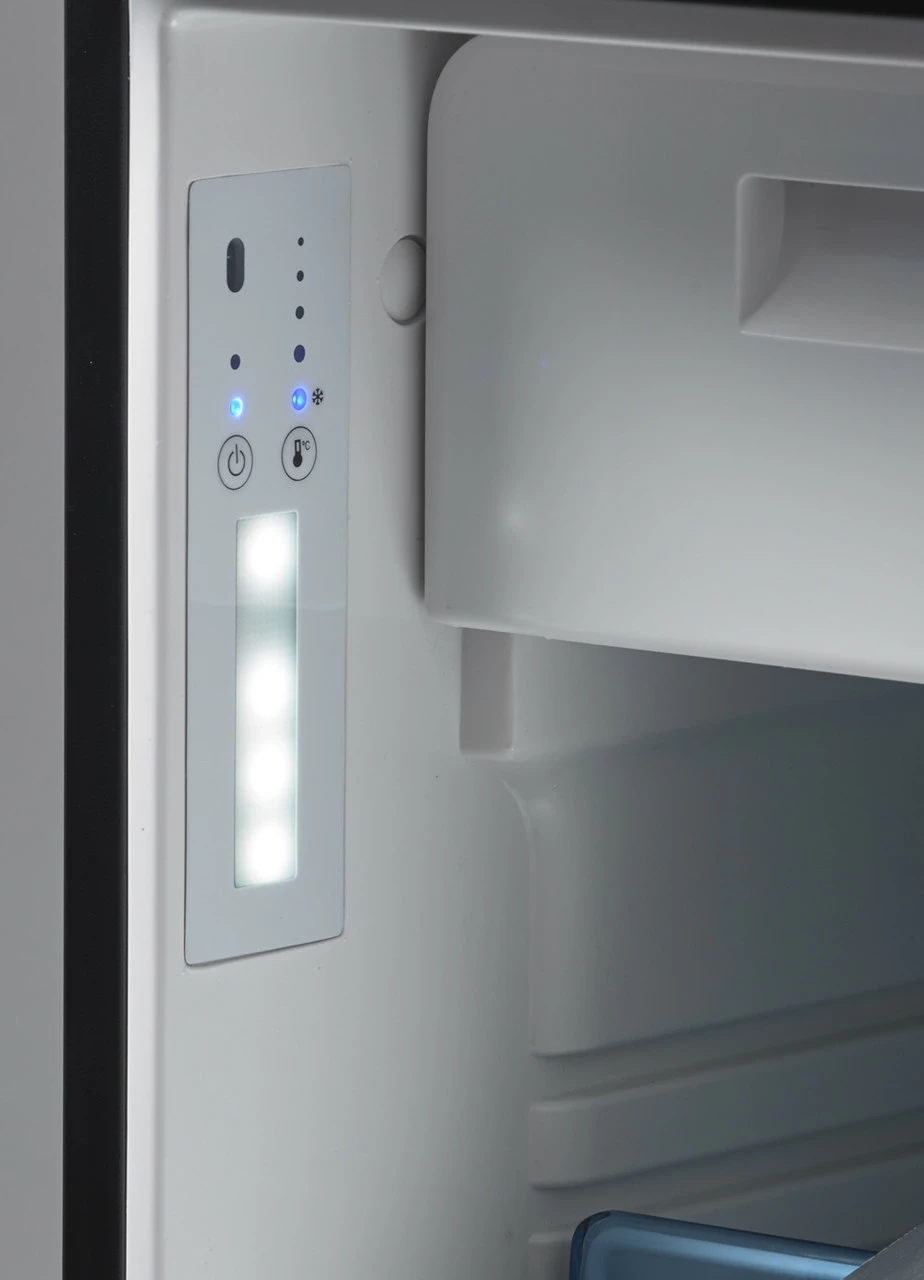

• New soft touch control panel
• Intelligent electronic control of the compressor speed – up to 25% less energy consumption
• 5 different temperature settings
• 2 stage battery protection
• Chamfered cabinet at rear base to help clear the campervan or caravan side
• Bright led interior light with infrared sensor
• Large bottle holder
• Door tray
• Salad bin
• 2 years warranty

Versatile and engineered for ease of use and continual high performance for your campervan or boat

The door of the Waeco CRX50 2-Way Compressor Fridge can be hinged on either side to conveniently accommodate for a left or right opening, whilst the décor panel can also be replaced to suit the interior of your campervan. The Waeco CRX50 Compressor 2-Way Fridge also features a venting position in the door lock to maintain freshness and airflow when the fridge isn’t in use and a double locking mechanism so the door can be secured at the top and bottom.

Alternative fridge models

Fridge	Height	Width	Depth
Dometic CRX50 Compressor Fridge	534mm	380mm	500mm
Dometic CRE50 Compressor Fridge	534mm	380mm	500mm
Webasto CR49 Compressor Fridge	520mm	381mm	500mm
Vitrifrigo C51i Compressor fridge	532mm	380mm	459mm (Flush 501mm)

Manual:

Diagnostics

• CR/CRX Flashes Chart
• Danfoss Compressor Diagnostics
• Coolmatic CR Troubleshooter

Technical Specifications:

Height (mm):

534

Width (mm):

380

Depth (mm):

500

Operation:

Compressor

Approximate weight:

17 kgs

Runs on:

12/24 vdc

Capacity:

45 litres total including 4.4 litre removable freezer compartment

Average power consumption:

40 watts

Connections:

12/24 vdc

Current consumption:

1.1 Ah/h at +25°C ambient temperature
