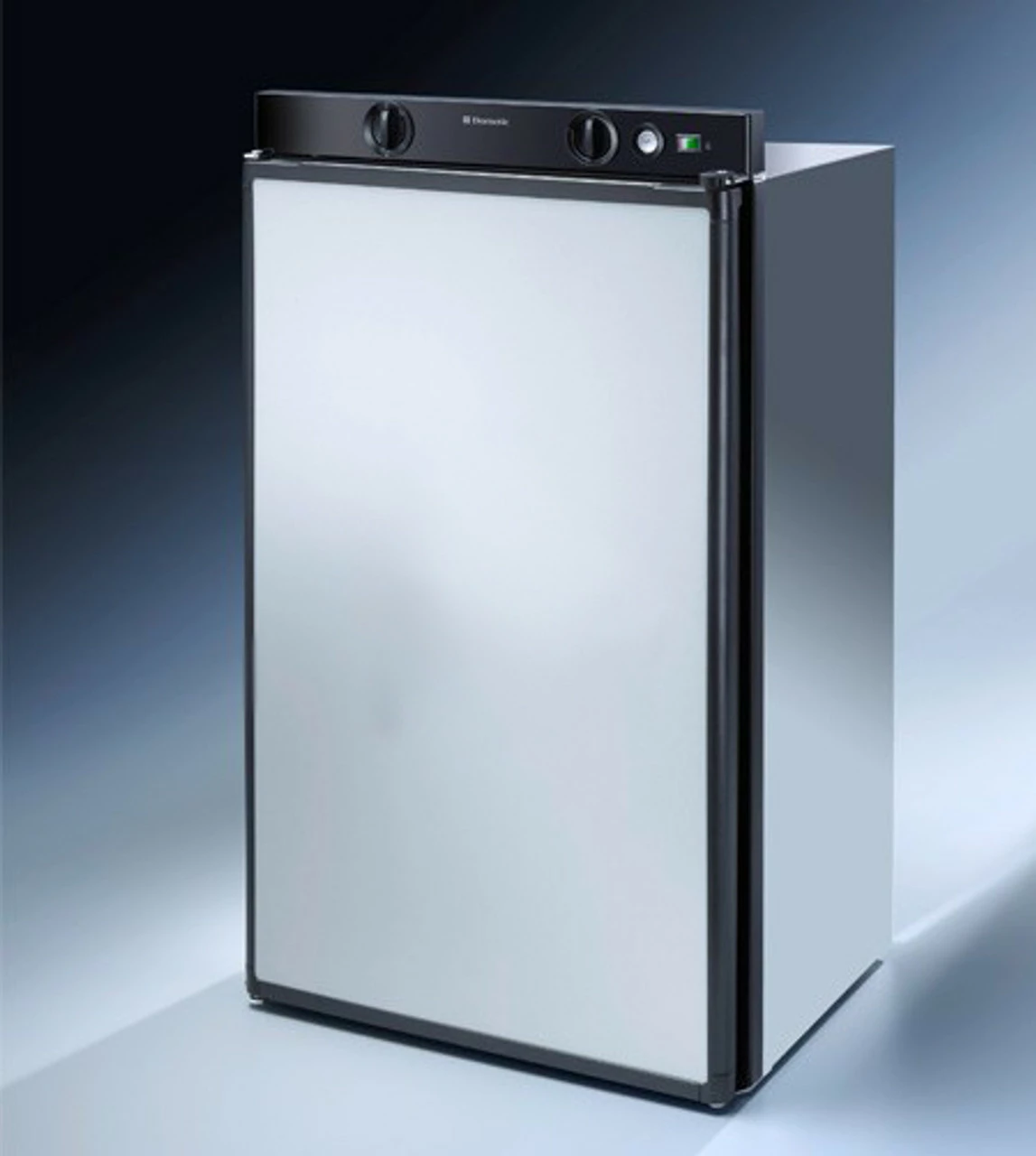

Dometic RM5380 Caravan 3 Way Absorption Fridge

The Dometic RM5380 80 Litre, 3-way Caravan & Motorhome fridge is one of the latest models by Dometic.

Normal
0

false
false
false

MicrosoftInternetExplorer4

Simple and straightforward to operate with its user friendly control panel and manual power source selection, the Dometic RM5380 3-Way Absorption Caravan Fridge combines a high quality cooling performance with convenient features and total efficiency.

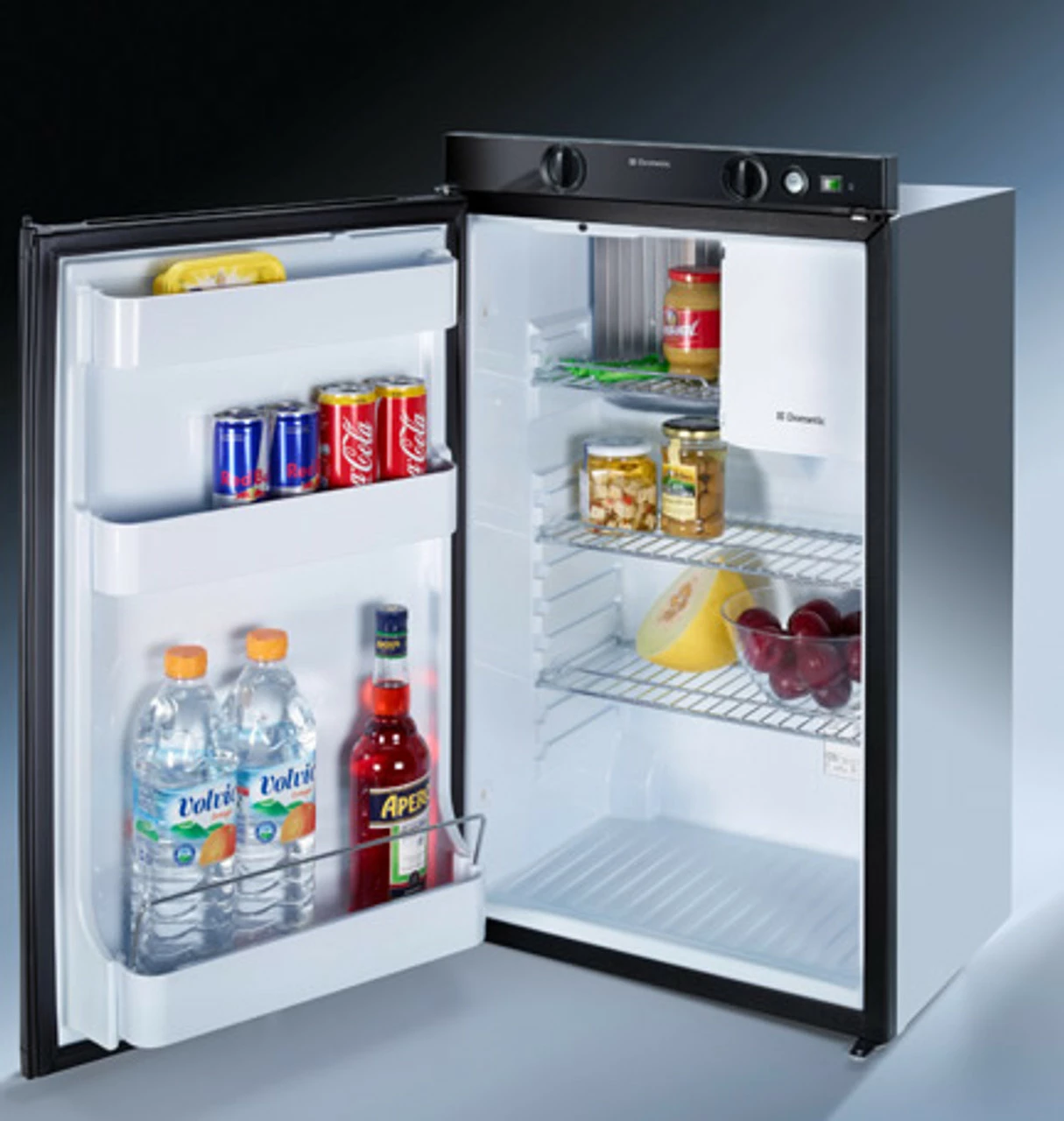

Featuring a flexible shelf system, magnetic and manual mechanical door safety lock / vent, the Dometic RM5380 3 Way Caravan Absorption Fridge also boasts a separate 5 litre freezer compartment capable of chilling right down to -12° C.

The Dometic RM5380 3 Way Absorption Fridge replaces the previous RM4281 Absorption Fridge model, and is exactly the same size.

Combining convenience and style, the Dometic RM5380 also has an internal LED light, changeable décor front panel and a Galvanometer in the control panel to allow for easy monitoring of the LPG Flame without having to use an inconvenient flame viewing window that might be buried behind all of your food!

The Dometic RM5380 Caravan 3 Way Absorption Fridge features include

• Absorption technology is Absolutely Silent!
• Ignition for LPG operation is provided by its own dry cell battery
• 80 Litres Total space, including a 5 Litre Freezer Compartment,
• Can be installed where there is no mains or 12v power supply,
• The unit must however still be properly fitted into a room sealed, and outside ventilated unit,
• A further rotary control sets the required temperature, which is maintained automatically by thermostatic control on mains and lpg gas
• The RM5380 comes complete with a ‘chimney-kit’ for the venting of heat and gases from the boiling tube,
• The top and bottom ventilation grill are extra and available on our related product pages
• The RM5830 ships with a hinge on the left, but is reversible!
• All gas appliances must be fitted by a qualified gas engineer, failure to comply may affect your warranty.

User Manual:

Installation Manual:



/* Style Definitions */
table.MsoNormalTable
{mso-style-name:”Table Normal”;
mso-tstyle-rowband-size:0;
mso-tstyle-colband-size:0;
mso-style-noshow:yes;
mso-style-parent:””;
mso-padding-alt:0cm 5.4pt 0cm 5.4pt;
mso-para-margin:0cm;
mso-para-margin-bottom:.0001pt;
mso-pagination:widow-orphan;
font-size:10.0pt;
font-family:”Times New Roman”;
mso-ansi-language:#0400;
mso-fareast-language:#0400;
mso-bidi-language:#0400;}

Technical Specifications:

Height (mm):

821

Width (mm):

486

Depth (mm):

474

Operation:

Absorption

Approx Weight:

24 kg

Runs on:

12/24v DC & 230v Mains

Capacity:

80 litres

The RM5380 Caravan Fridge cools to:

7°C Fridge, -12°C Freezer

Connections:

12v, Mains & LPG
