Dometic RCD10.5XT Tower Fridge Freezer 12v

As big as you can get.

This enormous compressor refrigerator gives you a whopping 177 litres of space, ensuring you’ll never feel the need to compromise in your food storage.

Innovative dual-hinge doors

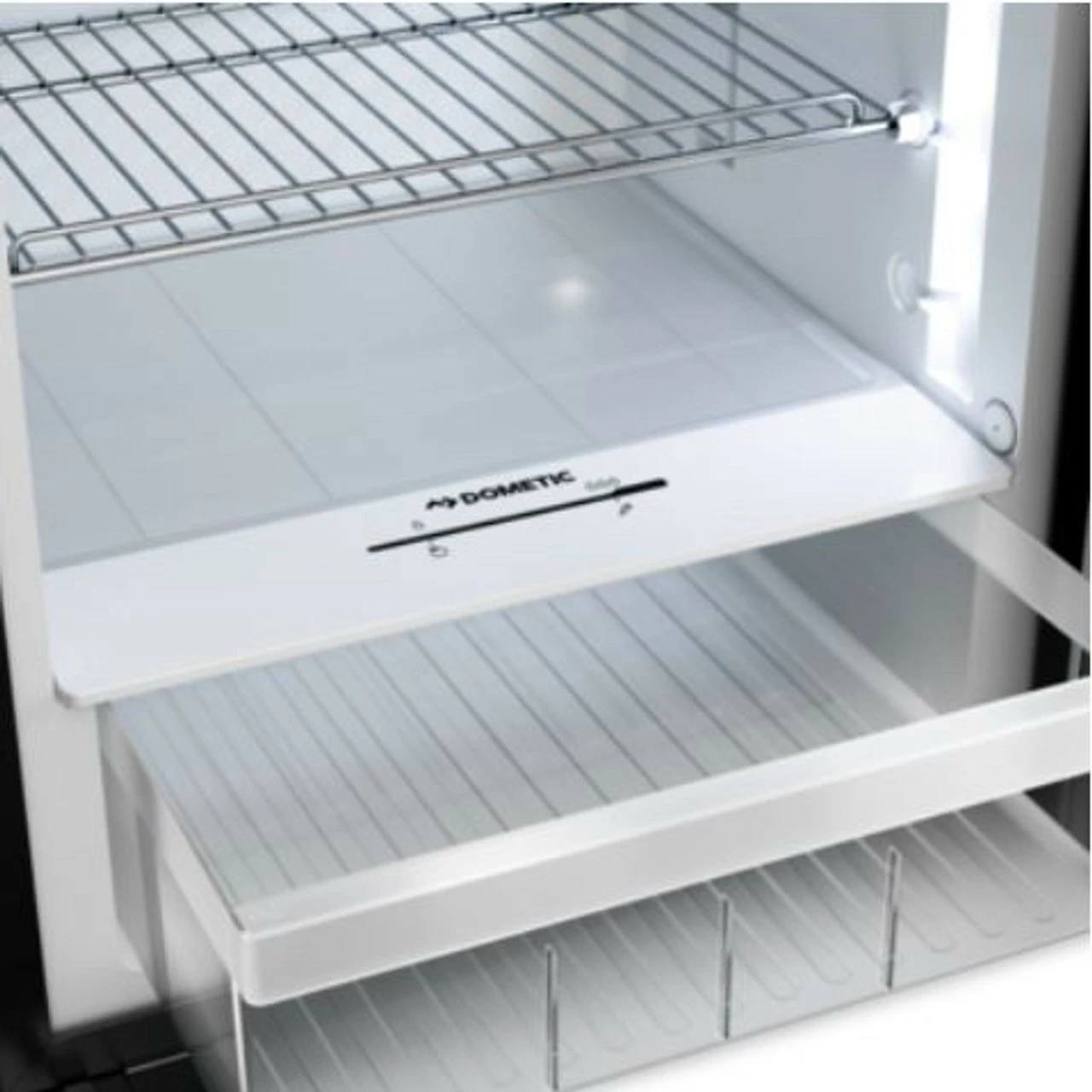

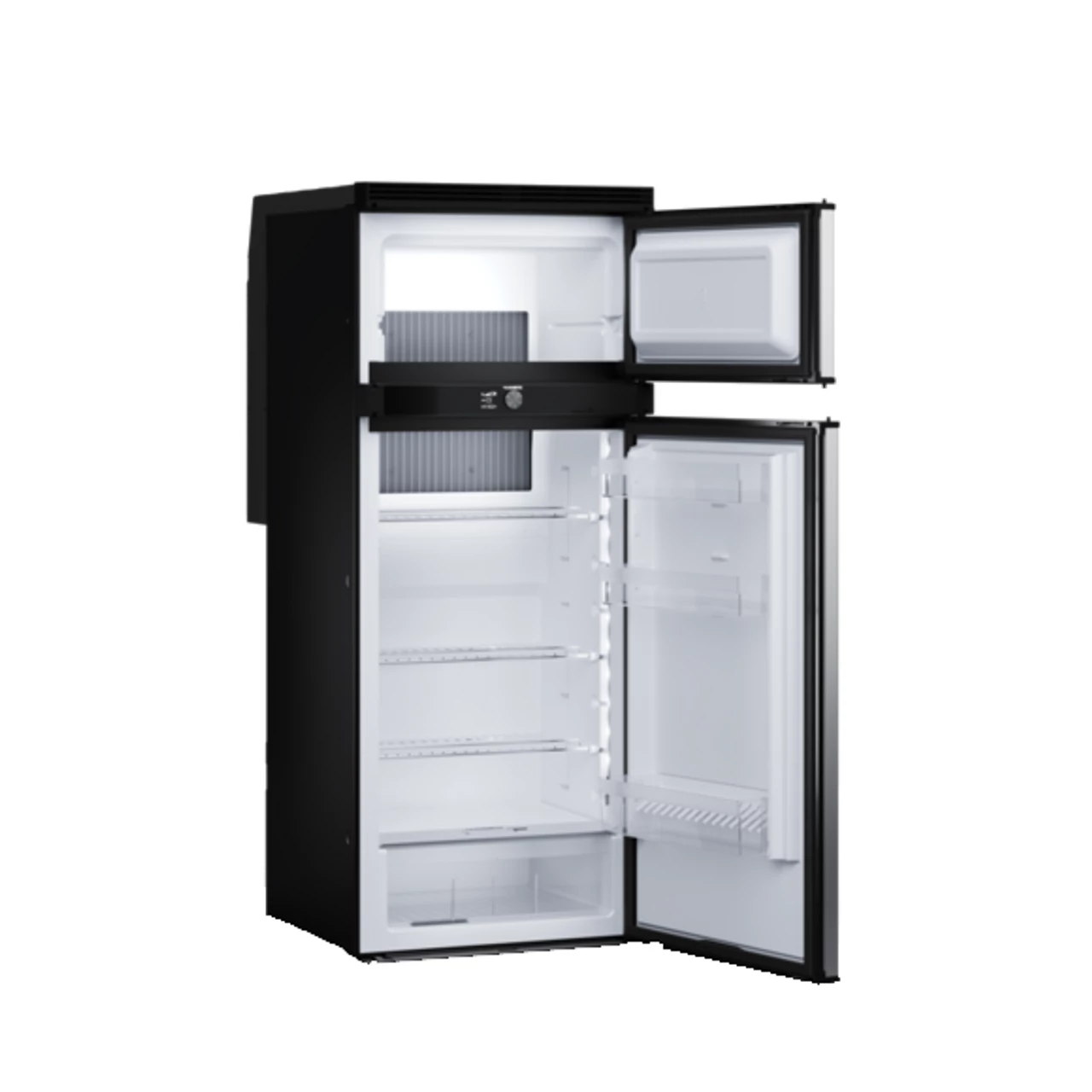

Dometic has equipped their 10 series fridges with doors which can open on both the left and right, without the need to move a hinge. This gives you effortless ease of use with any campervan, caravan, motorhome or boat layout. Each side of the Dometic RCD10.5XT fridge freezer features aluminium handles to compliment this feature, and a removable freezer compartment makes it easy to optimise your internal layout.

The Dometic RCD10.5XT Fridge Freezer is Sleek and efficient

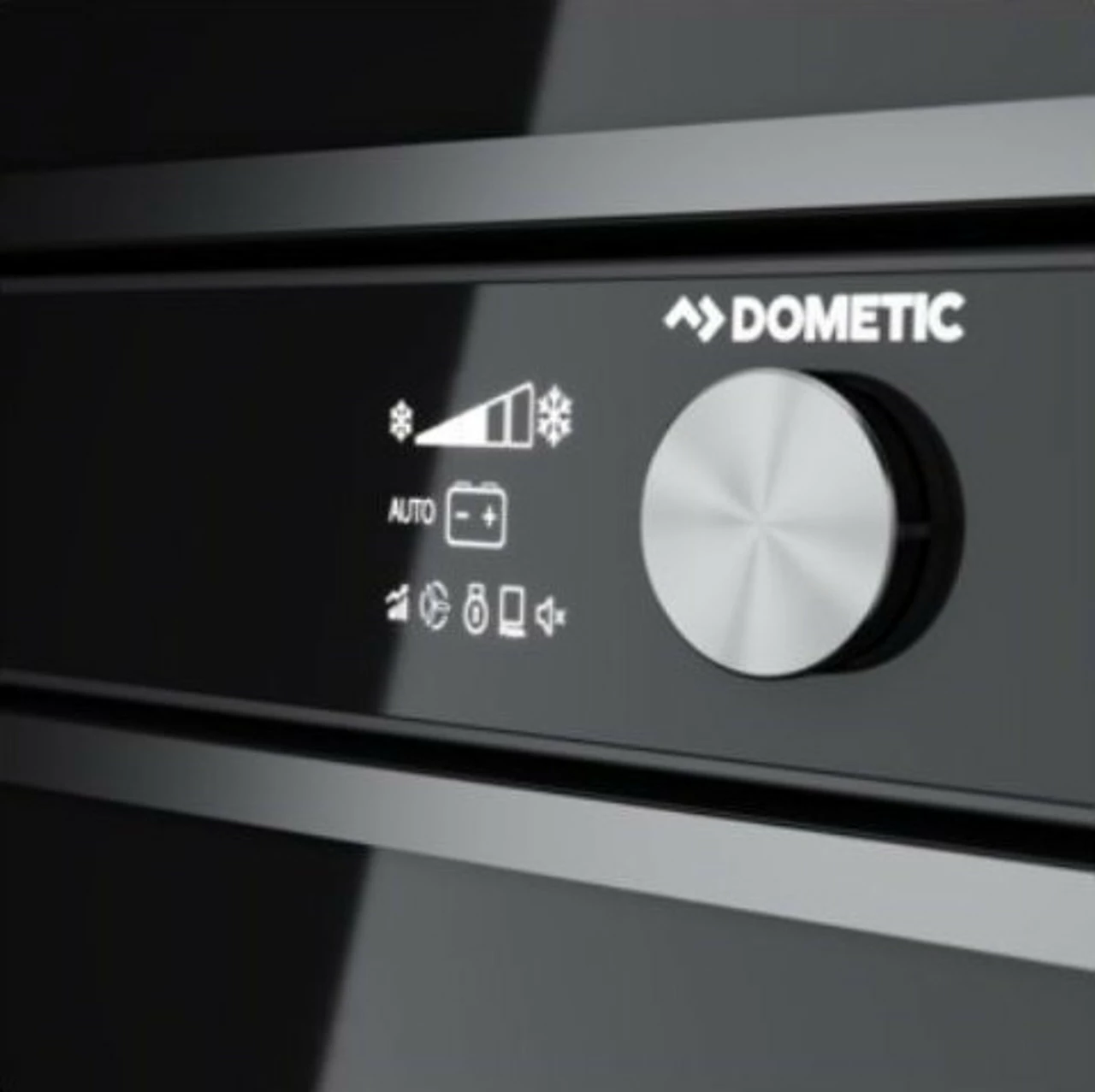

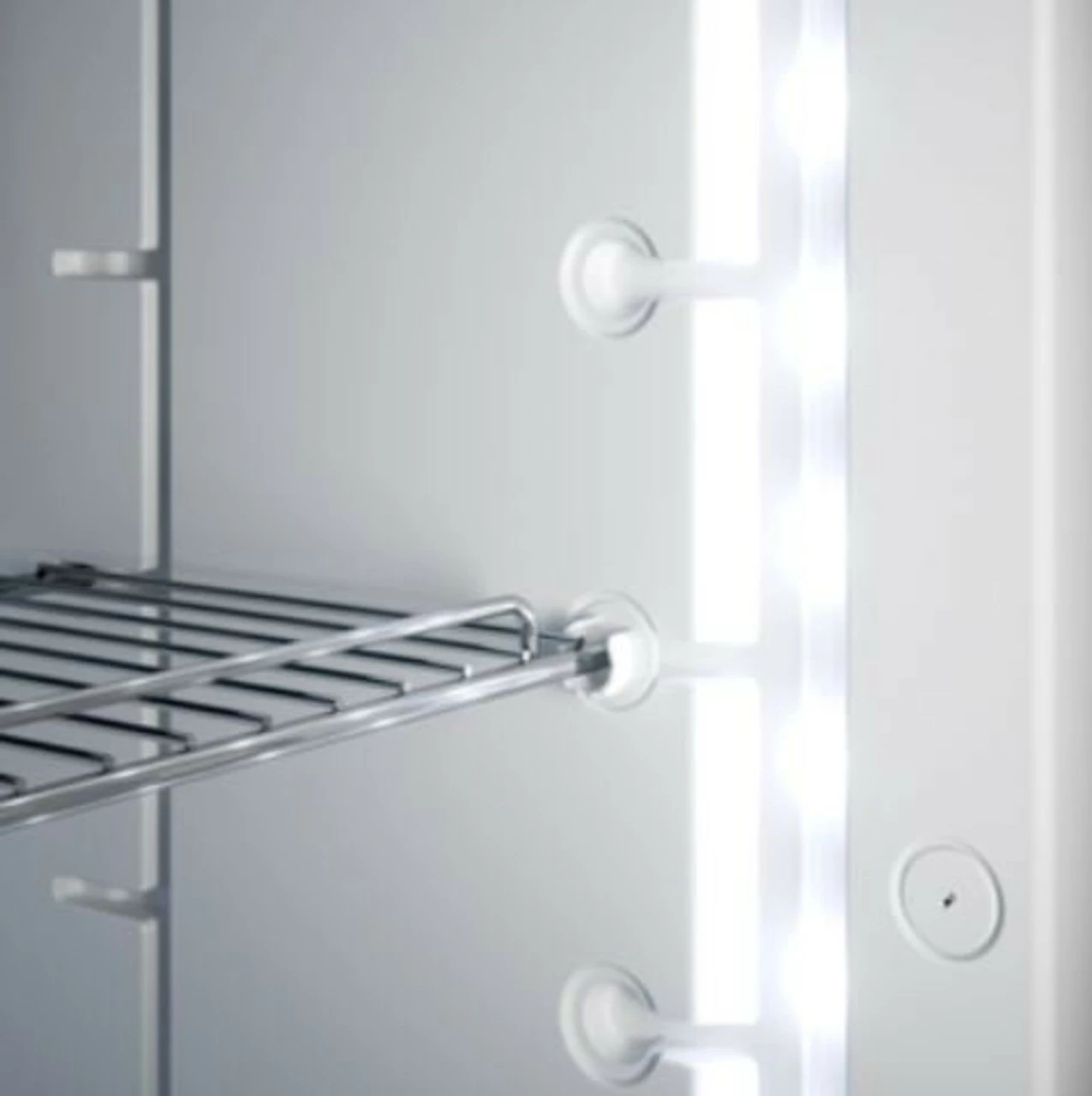

The RCD10.5XT runs off a 12v electric connection, and does so with remarkable efficiency due to their latest compressor refrigeration technology. You can monitor your fridge’s performance with the colour TFT display, and monitor your food on the inside with the integrated LED lighting strips. The exterior of the Dometic RCD10.5XT fridge freezer is finished in a slick anthracite black.

The Dometic RCD10.5XT is a close replacement for the following caravan fridges (check your measurements!)

Dometic

RM7801L RM7805L RM7851L+ RM7855L RMD8551 RMD8555 RML8550 RML8551 RML855

Thetford

N4145E N4145A N4150E+ N4175E+ N4150A N4170E+ N4170A N4175A T2175

Dometic RCD10.5XT fridge freezer features:

• 177L capacity
• Runs off 12v electric
• Uses compressor refrigeration technology
• Integrated TFT display
• Easy twist/push control dial
• Dual-sided hinges
• Interior LED lighting strips
• Removable freezer compartment

Note – this fridge is not suitable for use with the MPS 35 or MPS 50 adapter. These adapters operate at 24v, whilst this fridge requires 12v.

DOMETIC SMART CI-BUS TECHNOLOGY

Smart fridges like the Dometic RCD10.5XT Tower Fridge Freezer can now regularly be found in motorhomes campervans caravans! With CI-bus technology, the move from the smart home to your motorhome is possible. Dometic are now enabling motorhome, caravanning and marine users to operate all Dometic fridges conveniently via their central control unit.

Powerful cooling with convenient access

The Dometic RCD10.5XT dual-door caravan motor home fridge covers everything. The smart design adds style to your motor home kitchen, with its elegant flush-fitting doors that open up to a versatile interior with its smart storage solutions. The new double-hinged doors form Dometic allow maximum use in any space since they can be opened left or right using the full-height aluminium handles. Easily activate night mode for quieter performance or the boost function allowing for the RCD10.5XT fridge to provide super fast cooling.

Dometic RCD10.5XT User Manual



RCD10.5XT Tower Fridge Freezer Installation Manual

Technical Specifications:

Depth:

535 mm

Height:

1282 mm

Width:

523 mm

Net weight:

34.50 kg

Input voltage (DC):

12 V

Rated input current (DC):

4.5 A

Rated input power (DC):

54 W

Input frequency:

50/60 Hz

Refrigerant:

R134a – Contains fluorinated greenhouse gases

Refrigerant amount:

44 g

CO2 equivalent:

0.063 t
